Obsidian

Obsidian Relay

Obsidian Relay transfers encrypted files through Appwrite with scoped download access and browser-side decryption.

File transfer becomes awkward when the data plane and application API share the same request-size limits. Obsidian uploads ciphertext directly to storage and uses a small function request for the encrypted envelope, metadata and access policy. This separates large-file transfer from authorization logic.

Preview · Quick start · Architecture · Development · Contributing

Application preview

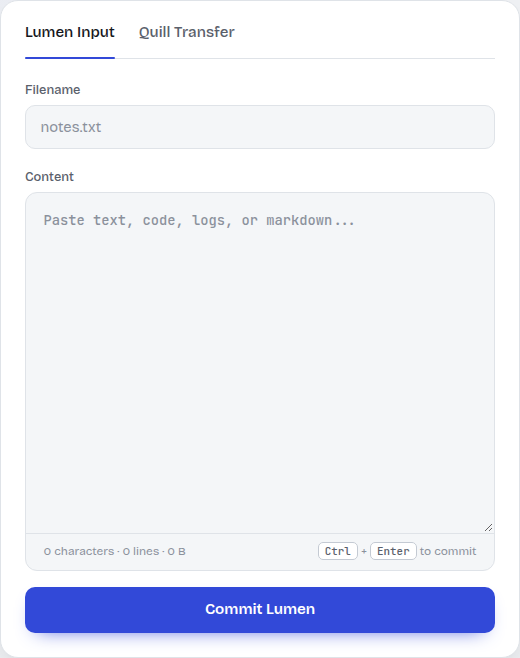

The browser input panel prepares a named text item for the relay. Transfers require a configured Appwrite backend; no transfer is demonstrated here.

Screenshot notes

Capabilities

Workflow	Result
Send a file	Encrypt in the browser and upload ciphertext directly to storage.
Control retrieval	Validate item scope, access codes and failed-attempt lockouts.
Recover a file	Authorize a short-lived download and decrypt in the receiving browser.

Quick start

Provision an Appwrite project with Functions, Storage and Databases. Use the Node.js 22 runtime for the function. Generate a private RSA key locally; do not commit the generated key or deploy it as a public site asset.

From a fresh checkout:

git clone https://github.com/ryash14/Obsidian.git
cd Obsidian
node tools/generate-key.mjs
# Configure Appwrite project/endpoint and site functionUrl.
# Install and authenticate the Appwrite CLI first.
appwrite login
appwrite push functions
appwrite push sites

Deploy the function with Node.js 22 and entrypoint src/main.js. Set VAULT_RSA_PRIVATE_KEY from the generated key, grant database/storage/token scopes, and add the site hostname as an Appwrite Web platform. Keep private keys private. Set sites/obsidian-relay/config.js to the function URL. Restrict ALLOWED_ORIGINS for deployment. The server can unwrap content keys; this is not encryption against the server operator. Rotating the RSA key makes existing items unreadable.

Appwrite configuration

Item	Required configuration
Function	Node.js 22, entrypoint src/main.js, execution access appropriate to the relay
VAULT_RSA_PRIVATE_KEY	Private key generated by tools/generate-key.mjs
Function scopes	Database/table/schema operations, storage operations and file tokens used by the relay
Site API URL	Set window.RELAY_CONFIG.functionUrl in sites/obsidian-relay/config.js
Web platform	Register the deployed site’s hostname in the Appwrite project
ALLOWED_ORIGINS	Restrict API access to the intended site origins
RELAY_MAX_BYTES	Keep the file-size limit within the storage bucket and plan limits
ACCESS_MAX_FAILURES, ACCESS_LOCK_SECONDS	Failed-code lockout policy

After deployment, request /config on the function domain to check configuration and schema provisioning. Use a small non-sensitive file to verify upload, authorized download and incorrect-code handling before relying on the relay.

Architecture and request flow

1. The browser encrypts each file with a fresh AES-GCM key and wraps that key for the function.
2. Ciphertext uploads directly to Appwrite Storage in chunks.
3. The relay function validates the envelope and records the item under the open index or an access code.
4. A later request is authorized before a short-lived file token and content key are returned. The browser decrypts the downloaded file.

Component model

sequenceDiagram
    participant B as Browser
    participant S as Appwrite Storage
    participant F as Relay Function
    participant D as Database
    B->>B: Encrypt file and wrap content key
    B->>S: Upload ciphertext directly
    B->>F: Submit envelope and metadata
    F->>D: Persist item and keyed access policy
    B->>F: Request item with access scope
    F->>D: Validate code and lockout state
    F-->>B: Short-lived token and content key
    B->>S: Download ciphertext
    B->>B: Decrypt and save

Engineering decisions

Appwrite Storage holds ciphertext; the database holds item metadata, keyed access-code hashes and failed-attempt state. The function provisions its schema and bucket on first use when its scopes permit it.

This protects stored file contents, but the server can unwrap the content key. It is not end-to-end encryption against the server operator. Filenames, types and sizes remain available to the application. Rotating the RSA key invalidates existing wrapped keys and access-code hashes.

Implementation

Stack: JavaScript · Node.js 22 · Web Crypto · Appwrite Functions · Appwrite Storage and Databases.

• appwrite.config.json
• functions/relay-api/src/main.js
• functions/relay-api/src/envelope.js

Development

Run the repository checks after completing setup:

node --check functions/relay-api/src/main.js
node --check functions/relay-api/src/envelope.js

Use the offline checks during development. Run provider-backed integration checks separately with configured credentials and representative inputs.

Contributing and support

Report reproducible bugs or propose changes through GitHub Issues. Include the relevant environment and a small example rather than private datasets or credentials. See contributing, security reporting and the code of conduct.

License

No repository-wide license is currently provided. Third-party components, models and datasets retain their own terms.
